Well Viewer

Well Viewer is the dedicated module for log and RFT/PLT data analysis.

It is the ideal environment for importing, exporting, visualizing, and analyzing well logs data from a variety of sources and formats. The user will have the most seamless workflow for analyzing log data.

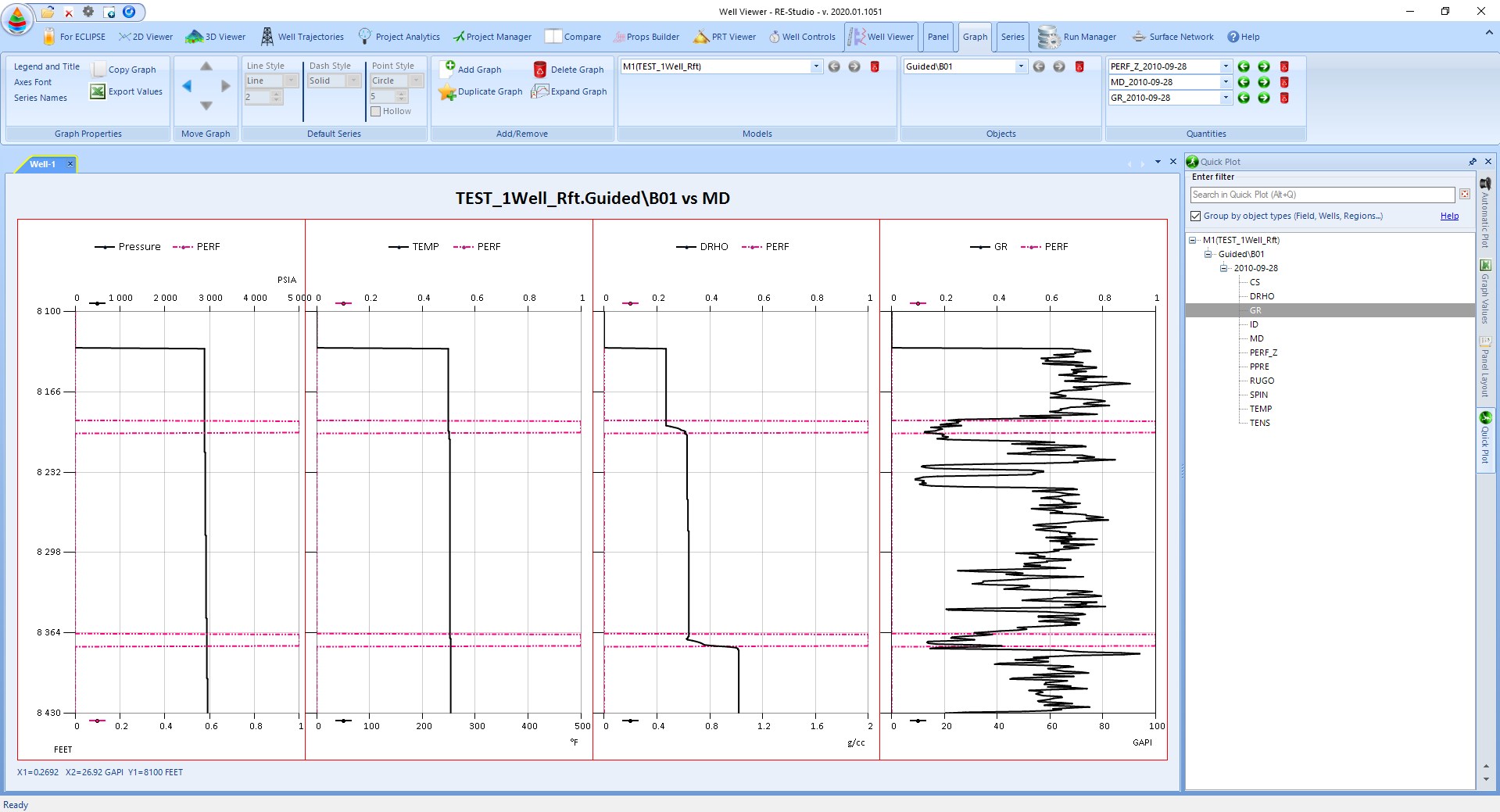

Well Viewer allows reservoir engineers to visualize and compare selected properties along the wellbore.

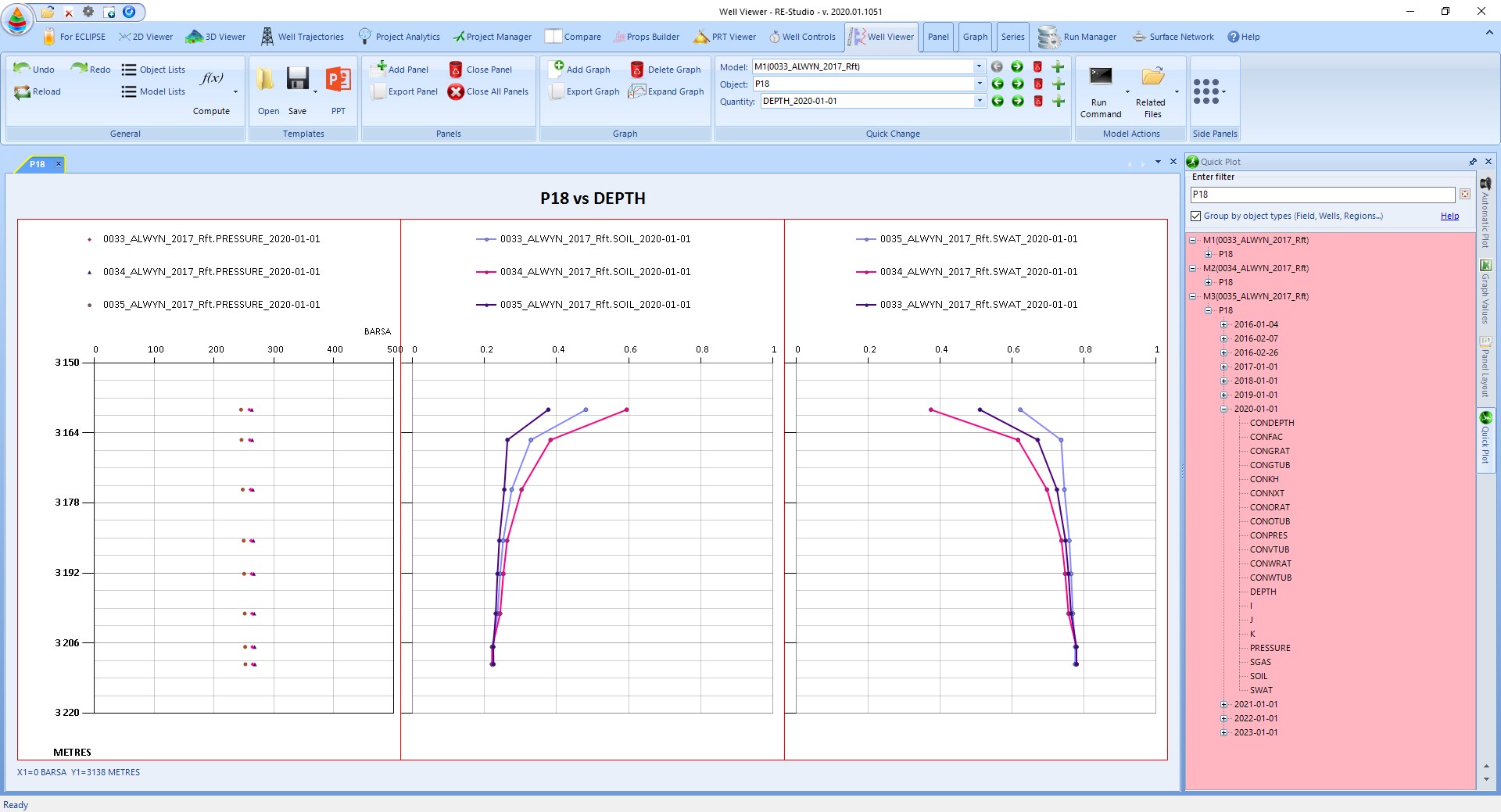

Pressures, saturations, connection flow rates along the well, in particular, can be plotted.

The user can overlay observed data and simulation results in the same plot, in order to quality check the reservoir model in wells area.
The simulated results can come from either the binary files generated by the respective simulators, or can be created dynamically in post-processing by RE-Studio from the 3D model itself.
